| SCOPE OF APPLICATION： |
| Applicable to a variety of machine parts which need gas carburizing, nitrocementation, carbonitriding, and normalizing, annealing, tempering treatment. |
| EQUIPMENT STRUCTURE AND CHARACTERISTICS： |

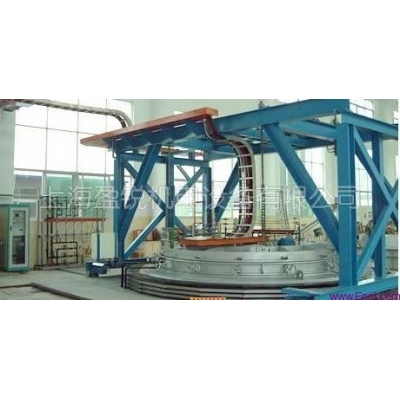

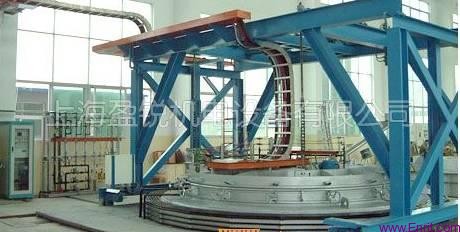

| The furnace is composed of furnace body, heating elements, muffle cans, draft tube, circulating fans, furnaces base, lid, lid lifting bodies, carbon potential / temperature control system, gas distribution system cooling pipes. Use suspension bottomless muffle (oil seal), built-in draft tube, aluminum silicate fiber modules, furnace base to directly bear the work-piece structure and is equipped with advanced control system to effectively ensure the uniformity of the furnace temperature and the uniform stability of carbon potential; Achieve automatic control, recording, mechanical movement interlock protection over temperature, carbon potential and process flow; This series of equipment with high efficiency is energy saving, easy to operate in reliable operation. |
|
型號
Model |
功率
Power(kw) |
工作溫度
Working temperature (℃) |
工作區(qū)尺寸
Work area size (mm) |
裝載量
Loading capacity |
|
RQD-80/120-DS
|
80
|
950～550
|
Φ800×1200
|
1500
|
|
RQD-100/150-DS
|
125
|
950～550
|
Φ1000×1500
|
2500
|
|
RQD-100/450-DS
|
220
|
950～550
|
Φ1000×4500
|
8000
|
|
RQD-150/200-DS
|
245
|
950～550
|
Φ1500×2000
|
5000
|
|
RQD-160/300-DS
|
280
|
950～550
|
Φ1600×2000
|
6000
|
|
RQD-180/300-DS
|
330
|
950～550
|
Φ1800×3000
|
10000
|
|
RQD-200/250-DS
|
380
|
950～550
|
Φ2000×2500
|
2000
|
|
RQD-250/200-DS
|
500
|
950～550
|
Φ2500×2000
|
2500
|
|
RQD-280/200-DS
|
550
|
950～550
|
Φ2800×2000
|
28000
|
|
RQD-350/160-DS
|
600
|
950～550
|
Φ3500×1600
|
30000
|
|
RQD-400/180-DS
|
750
|
950～550
|
Φ4000×1800
|
40000
|
|
For non-standard types of equipment, they can be designed and manufactured according to user needs.
|
