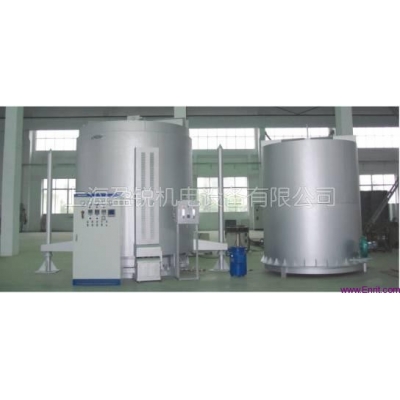

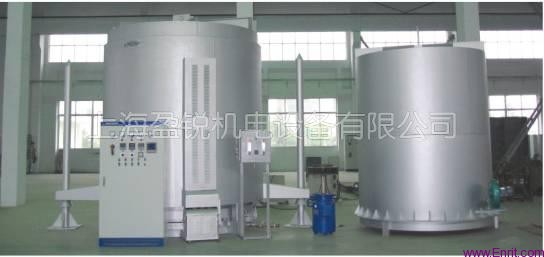

| EVICE DESCRIPTION： |
| This device adopts a new type of light energy-saving material, its structural design is reasonable with good heat-insulation function, in the technical state of below the temperature of 1000 ℃, the heating mantle surface temperature rises less than by 40℃. The ammonia decomposition gas or nitrogen can be used for protective gas for material chamber, annealed materials in the state of high temperature annealing has non-oxidation or no decarburization. The system for vacuumizing can save a huge amount of protective gas and electricity consumption. Use PID to automatically control the temperature-adjustment in furnace, and implement a full range of control and management over the various furnace seats' temperature rise, temperature-preservation and cooling process, firmly guaranteeing the products will meet the requirements of users. |
| MAIN TECHNICAL PARAMETERS： |
|
型號 Model
|
有效裝料直徑
Diameter of work zone (mm) |
內(nèi)罩直徑
Inner cover diameter (mm) |
有效裝料高度
Height of work zone (mm) |
爐子高度
Furnace height (mm) |
地坑高度
Pit height (mm) |
行車吊鉤高度
Travelling crane lifting hook height (mm) |
占地面積長×寬
sizes of area: length × width (mm) |
|
RZ-100/160
RZ-100/200 RZ-100/250 RZ-100/290 |
1000
|
1200
2000 2500 2900 |
1600
|
3400
3800 4300 4700 |
1000
|
6500
7300 8300 9100 |
12700×4000
|
|
RZ-120/160
RZ-120/200 RZ-120/250 RZ-120/290 RZ-120/320 |
1200
|
1400
2000 2500 2900 3200 |
1600
|
3500
3900 4400 4800 5100 |
1000
|
6600
7400 8400 9200 9800 |
13500×4100
|
|
RZ-140/160
RZ-140/200 RZ-140/250 RZ-140/290 RZ-140/320 |
1400
|
1600
2000 2500 2900 3200 |
1600
|
3600
4000 4500 4900 5200 |
1000
|
6800
7600 9600 9400 10000 |
14300×4300
|
|
RZ-160/200
RZ-160/250 RZ-160/290 RZ-160/320 |
1600
|
1800
2500 2900 3200 |
2000
|
4100
4600 5000 5300 |
1000
|
7700
8700 9500 10100 |
15100×4500
|
|
The equipment can be designed and manufactured according to different requirements of users in terms of products specifications and output.
|
