| PRODUCT SPECIFICATIONS INTRODUCTION： |

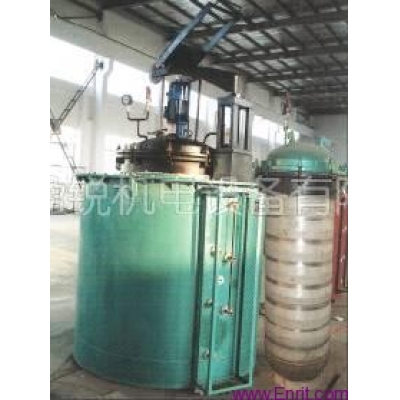

| The different parts of equipment have intelligent temperature control, traceable technology, aluminum silicate fiber lining, silicon rubber sealing and is equipped with cooling water circulation, and is efficient and energy-saving. The equipment is widely used in non-oxidation or decarburization annealing for spring steel, tool steel, bearing steel band and wire; in bright annealing for copper and brass tubes, tapes and wires; in annealing for silicon steel and other materials; annealing for machine parts and casting and forging parts. |
|
型號(hào)
Model |
功率
Power(kw) |
工作溫度
Working temperature (℃) |
加熱區(qū)數(shù)
number of heating zones |
爐膽尺寸
internal furnace size (mm) |
|
RJZ-35-9
|
35Kw
|
950℃
|
2
|
Φ400×600
|
|
RJZ-45-9
|
45Kw
|
950℃
|
2
|
Φ600×800
|
|
RJZ-60-9
|
60Kw
|
950℃
|
2
|
Φ700×900
|
|
RJZ-70-9
|
70Kw
|
950℃
|
2
|
Φ700×1200
|
|
RJZ-80-9
|
80Kw
|
950℃
|
3
|
Φ800×1000
|
|
RJZ-90-9
|
90Kw
|
950℃
|
3
|
Φ800×1200
|
|
RJZ-95-9
|
95Kw
|
950℃
|
3
|
Φ900×1200
|
|
RJZ-100-9
|
100Kw
|
950℃
|
3
|
Φ800×1500
|
|
RJZ-120-9
|
120Kw
|
950℃
|
3
|
Φ800×2000
|
|
RJZ-150-9
|
150Kw
|
950℃
|
3
|
Φ1000×2000
|
|
RJZ-200-9
|
200Kw
|
950℃
|
3
|
Φ1000×2500
|
|
RJZ-250-9
|
250Kw
|
950℃
|
3
|
Φ1000×3000
|
|
RJZ-300-9
|
300Kw
|
950℃
|
3
|
Φ1200×3000
|
|
In addition to the above specifications, the equipment can be designed and manufactured according to different requirements of users in terms of products specifications and output.
|
